AC•THOR / AC ELWA 2

Option 1: Add by MAC address (recommended for networks with DHCP)
Option 2: Add by fixed IP address, domain, or hostname

1. Basic settings on the my-PV device

First read the installation and user manual supplied with the device, as well as the online manual.

Configure the following parameters in the web interface or via my-PV Cloud:

Setting	Value / Comment

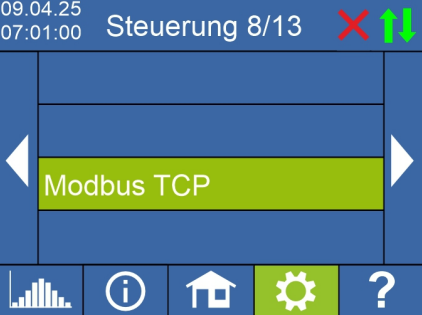

Control source	Modbus TCP

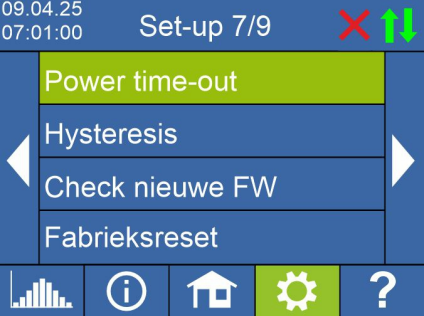

Power time-out	60 seconds

These settings can be applied directly on the device, via the web interface, or through my-PV Cloud.

Boiler

Cloud

Setting	Example value	Comment
Is the device single or three phase?	Single phase	Select the correct phase configuration
Normal power (W)	[device-specific]	Nominal power of the my-PV device
Operating voltage	Same as the main device	Operating voltage
Normal voltage type	Phase-neutral	Select voltage type (Phase-neutral or Phase-phase)
Normal voltage (V)	2300	Nominal voltage in Volts (e.g. 230V × 10)
