Self-configured energy meter (*special support terms apply)

When your energy meter has configurable modbus addresses (or when your energy meter is not in the list of supported devices) , we supply a feature to configure an energy meter yourself. It's a process that allows you to set up the energy meter as a modbus slave, enabling it to communicate with the SmartgridOne Controller.

Caution

WARNING: Special support terms apply: *Please note that this feature is provided “as-is” and should be used at your own risk. If you run into any issues or need dedicated assistance, we’re happy to help under a support contract. Contact for pricing and availability.

Step 1

Connect the meter to the SmartgridOne Controller using RS485 or Modbus TCP.

For Modbus-TCP ethernet: Please follow . For correct ethernet wiring:
For RS485: Please follow

Also, check your meter's manual for the correct wiring and connection details and check if any settings need to be changed to enable the modbus communication.

Step 2

Collect the following information from your energy meter:

Modbus address: The address of the energy meter on the RS485 bus.
Baud rate: The communication speed of the energy meter (e.g., 9600, 19200, etc.).
Parity: The parity setting of the energy meter (e.g., None, Even, Odd).

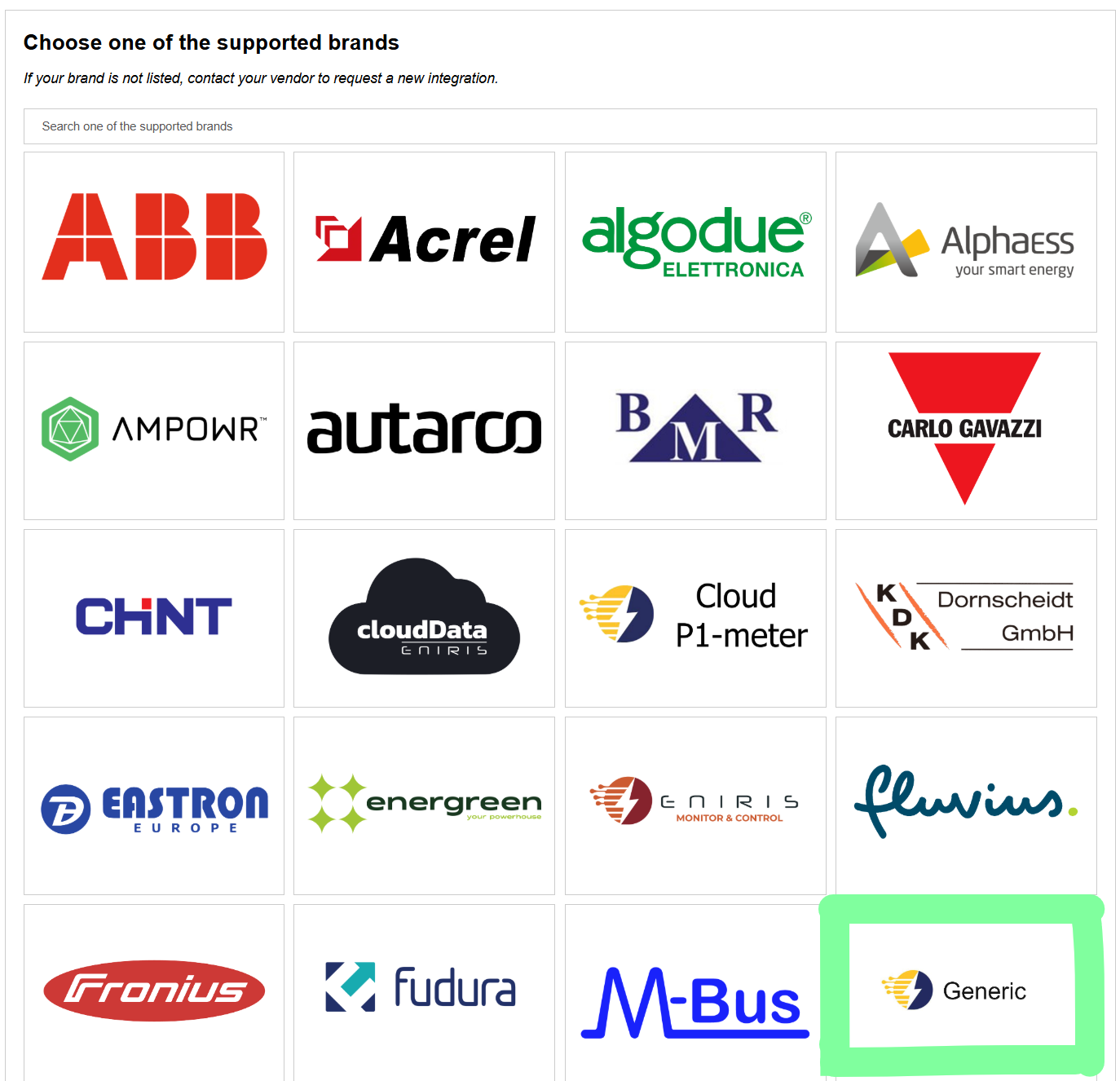

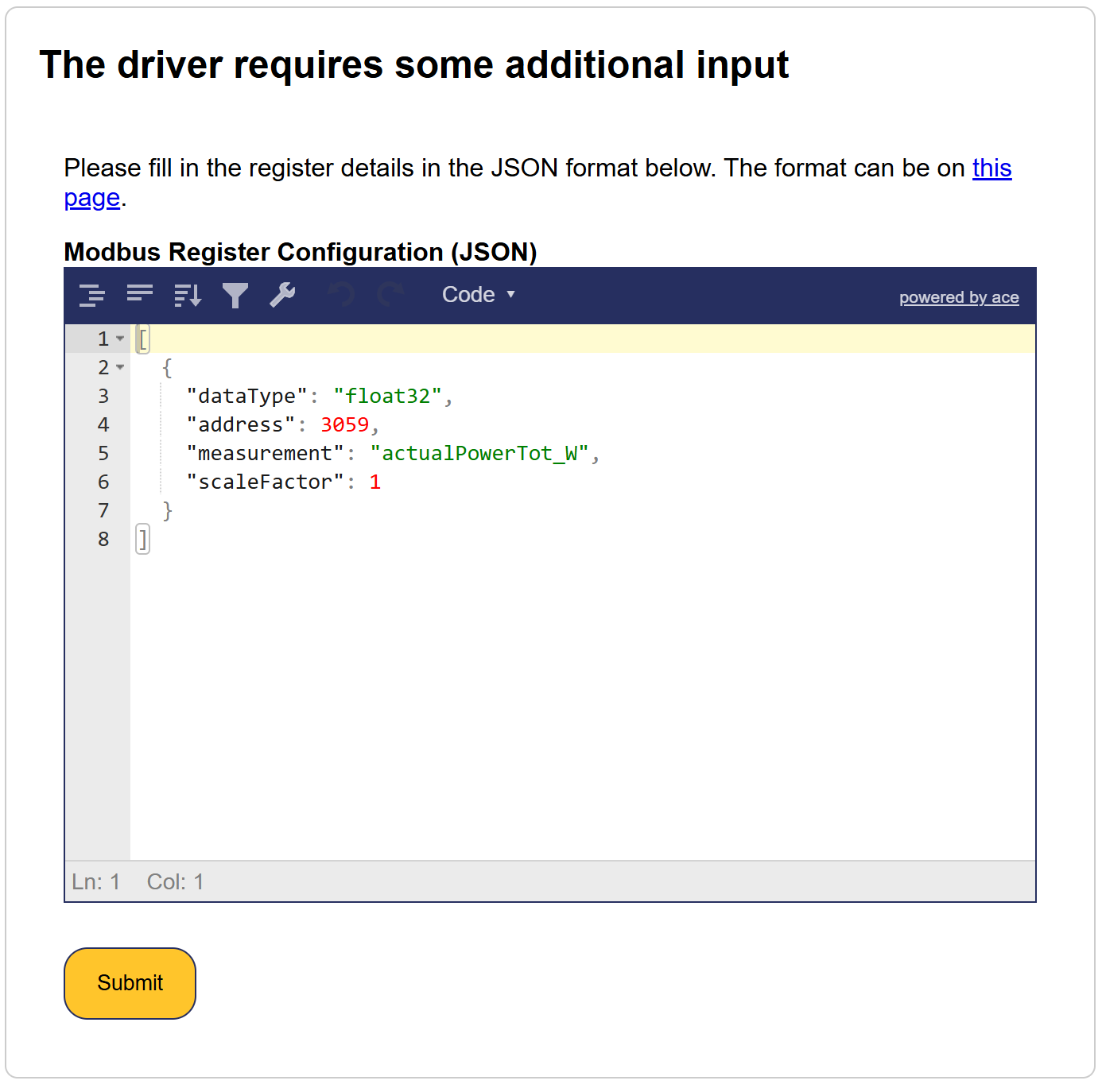

Register information: For each measurement you want to read, you'll need:
- Register address (in decimal)
- Data type (e.g., int16, uint32, float32)

Self-configured energy meter (*special support terms apply)

Caution

Step 1

Connect the meter to the SmartgridOne Controller using RS485 or Modbus TCP.

For Modbus-TCP ethernet: Please follow . For correct ethernet wiring:
For RS485: Please follow

Also, check your meter's manual for the correct wiring and connection details and check if any settings need to be changed to enable the modbus communication.

Step 2

Collect the following information from your energy meter:

Modbus address: The address of the energy meter on the RS485 bus.
Baud rate: The communication speed of the energy meter (e.g., 9600, 19200, etc.).
Parity: The parity setting of the energy meter (e.g., None, Even, Odd).
Register information: For each measurement you want to read, you'll need:
- Register address (in decimal)
- Data type (e.g., int16, uint32, float32)

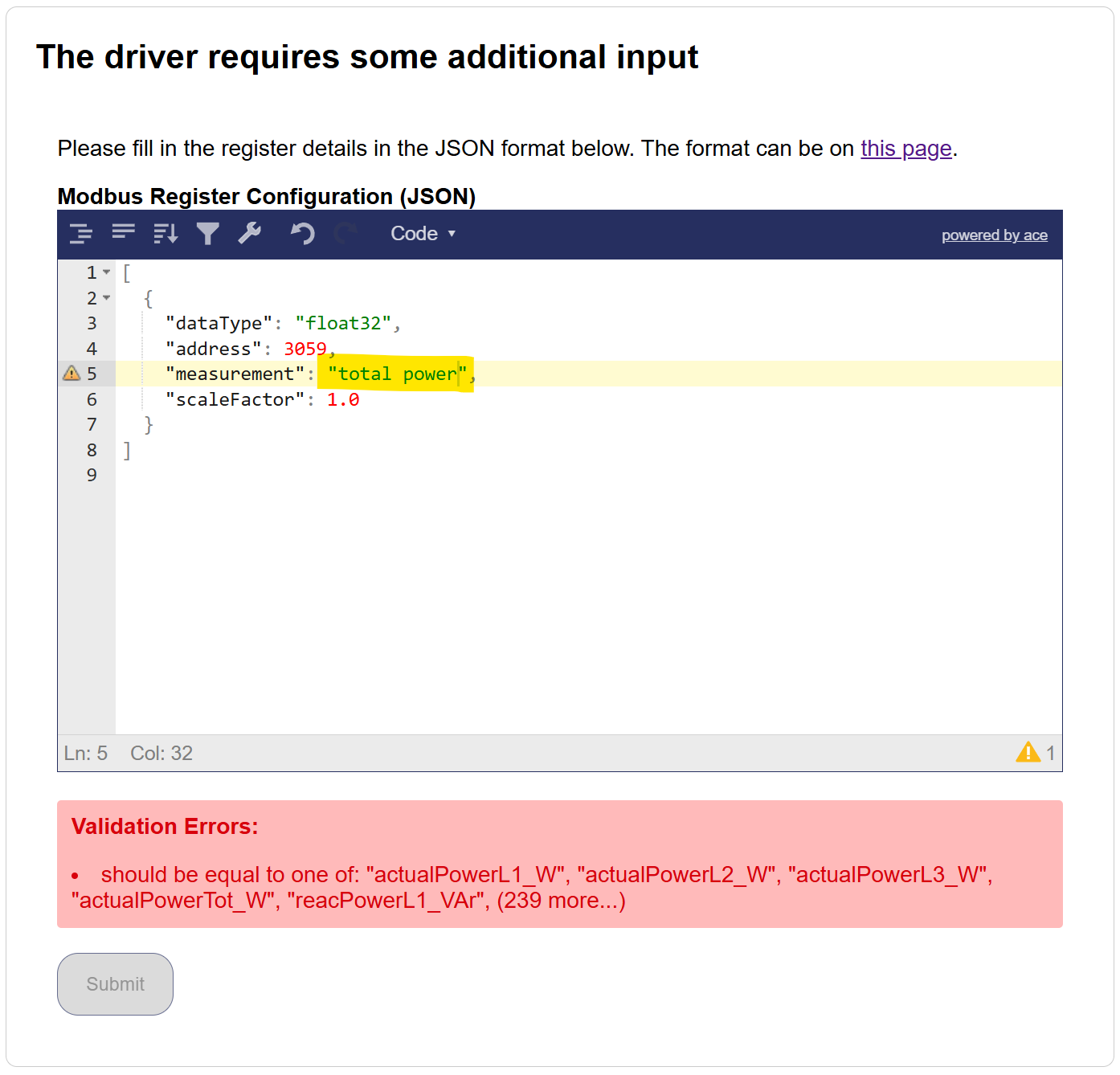

actualPowerL1_W actualPowerL2_W actualPowerL3_W actualPowerTot_W reacPowerL1_VAr reacPowerL2_VAr reacPowerL3_VAr reacPowerTot_VAr importedAbsEnergyL1_Wh importedAbsEnergyL2_Wh importedAbsEnergyL3_Wh importedAbsEnergyTot_Wh importedEnergyTodayTot_Wh importedAbsReacEnergyL1_VArh importedAbsReacEnergyL2_VArh importedAbsReacEnergyL3_VArh importedAbsReacEnergyTot_VArh importedEnergyDeltaTot_Wh grossImportedEnergyDeltaTot_Wh importedReacEnergyDeltaL1_VArh importedReacEnergyDeltaL2_VArh importedReacEnergyDeltaL3_VArh importedReacEnergyDeltaTot_VArh exportedAbsEnergyL1_Wh exportedAbsEnergyL2_Wh exportedAbsEnergyL3_Wh exportedAbsEnergyTot_Wh exportedEnergyTodayTot_Wh exportedAbsReacEnergyL1_VArh exportedAbsReacEnergyL2_VArh exportedAbsReacEnergyL3_VArh exportedAbsReacEnergyTot_VArh exportedEnergyDeltaL1_Wh exportedEnergyDeltaL2_Wh exportedEnergyDeltaL3_Wh exportedEnergyDeltaTot_Wh grossExportedEnergyDeltaTot_Wh exportedReacEnergyDeltaL1_VArh exportedReacEnergyDeltaL2_VArh exportedReacEnergyDeltaL3_VArh exportedReacEnergyDeltaTot_VArh producedAbsEnergyL1_Wh producedAbsEnergyL2_Wh producedAbsEnergyL3_Wh producedAbsEnergyTot_Wh producedAbsReacEnergyTot_VArh consumedAbsEnergyL1_Wh consumedAbsEnergyL2_Wh consumedAbsEnergyL3_Wh consumedAbsEnergyTot_Wh consumedEnergyTodayTot_Wh consumedAbsReacEnergyTot_VArh producedEnergyDeltaTot_Wh consumedEnergyDeltaTot_Wh producedEnergyTodayTot_Wh chargedAbsEnergyTot_Wh chargedEnergyTodayTot_Wh chargedEnergyDeltaTot_Wh dischargedAbsEnergyTot_Wh dischargedEnergyTodayTot_Wh dischargedEnergyDeltaTot_Wh childrenProducedEnergyDeltaTot_Wh childrenConsumedEnergyDeltaTot_Wh childrenLoadsPower_W childrenLoadsImpEnergyDeltaTot_Wh childrenLoadsExpEnergyDeltaTot_Wh childrenOtherPower_W childrenOtherImpEnergyDeltaTot_Wh childrenOtherExpEnergyDeltaTot_Wh childrenUnmeasPower_W childrenUnmeasImpEnergyDeltaTot_Wh childrenUnmeasExpEnergyDeltaTot_Wh childrenProducedPower_W childrenConsumedPower_W childrenStoragePower_W childrenEVPower_W childrenHVACPower_W autoconsumedEnergyDeltaTot_Wh producedExpEnergyDeltaTot_Wh childrenStorageChargedEnergyDeltaTot_Wh childrenStorageDischargedEnergyDeltaTot_Wh childrenStorageSolarChargeEnergyDeltaTot_Wh childrenStorageGridChargeEnergyDeltaTot_Wh childrenStorageSolarDischargeEnergyDeltaTot_Wh childrenStorageGridDischargeEnergyDeltaTot_Wh childrenEVChargeEnergyDeltaTot_Wh childrenHVACEnergyDeltaTot_Wh currentL1_A currentL2_A currentL3_A currentN_A currentLAvg_A voltageL1N_V voltageL2N_V voltageL3N_V voltageLNAvg_V voltageL1L2_V voltageL2L3_V voltageL3L1_V voltageLLAvg_V frequency_Hz powerFactorTot powerFactorL1 powerFactorL2 powerFactorL3 voltageDCBus_V voltageInput1_V currentInput1_A powerInput1_W voltageInput2_V currentInput2_A powerInput2_W voltageInput3_V currentInput3_A powerInput3_W voltageInput4_V currentInput4_A powerInput4_W voltageInput5_V currentInput5_A powerInput5_W voltageInput6_V currentInput6_A powerInput6_W voltageInput7_V currentInput7_A powerInput7_W voltageInput8_V currentInput8_A powerInput8_W voltageInput9_V currentInput9_A powerInput9_W voltageInput10_V currentInput10_A powerInput10_W voltageDC_V currentDC_A voltageInputA_V currentInputA_A powerInputA_W voltageInputA1_V currentInputA1_A powerInputA1_W voltageInputA2_V currentInputA2_A powerInputA2_W voltageInputA3_V currentInputA3_A powerInputA3_W voltageInputA4_V currentInputA4_A powerInputA4_W voltageInputA5_V currentInputA5_A powerInputA5_W voltageInputA6_V currentInputA6_A powerInputA6_W voltageInputB_V currentInputB_A powerInputB_W voltageInputB1_V currentInputB1_A powerInputB1_W voltageInputB2_V currentInputB2_A powerInputB2_W voltageInputB3_V currentInputB3_A powerInputB3_W voltageInputB4_V currentInputB4_A powerInputB4_W voltageInputB5_V currentInputB5_A powerInputB5_W voltageInputB6_V currentInputB6_A powerInputB6_W currentInputTot_A voltageInputAvg_V powerInputTot_W cabinetTemp_degC ambientTemp_degC heatSinkTemp_degC isolationResistance_kOhm runTimeTot_s status statusMsg workingMode operationMode heatingAbsEnergy_Wh heatingAbsVolume_m3 flowRate_m3ph thermalPower_W departureLineTemp_degC returnLineTemp_degC chargedAbsSessionEnergyTot_Wh sessionDuration_s chargingSessionId evNumOfPhases evUsedPhases evTargetACChargeCurrent_A evRequiringCharge remainingEnergy_Wh batteryVoltage_V batteryCurrent_A batteryPower_W batteryTemp_degC batteryOperationMode PVOperationMode gridOperationMode current_A consumedEnergy_Ah stateOfCharge_frac powerSetpoint_W minStateOfCharge_frac stateOfHealth_frac storedEnergy_Wh absVolume_m3 volumeDelta_m3 flow_m3ps absPulseCount pulseCountDelta pulseRate_ph flow1_m3ps flow2_m3ps flow3_m3ps flow4_m3ps flow5_m3ps flow6_m3ps flow7_m3ps flow8_m3ps flow9_m3ps flow1_Lps flow2_Lps flow3_Lps flow4_Lps flow5_Lps flow6_Lps flow7_Lps flow8_Lps flow9_Lps
