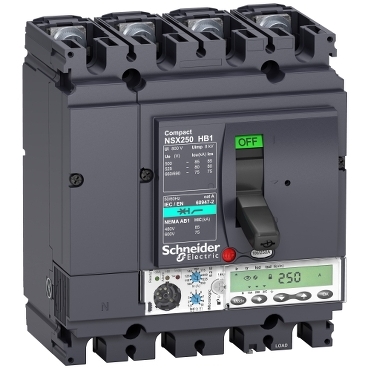

The Schneider ComPact NSX is a circuit breaker that can also measure energy. To communicate with the SmartgridOne Controller, it must be equipped with a MicroLogic 5, 6, or 7 trip unit.
We support the ComPact NSX range with Electronic Trip Units. Choose the driver that matches your device's Modbus profile.
| Device Type | Modbus TCP (Ethernet) | RS485 | Instruction video |
|---|---|---|---|
| ComPact NSXe | ✅ | ✅ | |
| ComPact NSXs |
Important: Check your Trip Unit This driver only works if your breaker has a MicroLogic 5.x, 6.x, or 7.x trip unit.
You cannot wire directly to the breaker The ComPact NSX does not have built-in RS485 or Ethernet terminals. You must install an external Interface Module (Gateway) on the DIN rail next to the breaker.
Regardless of your communication method, you need the NSX Cord.
Required Part: EcoStruxure IFM Module (Ref: LV434000)
| Device | SmartgridOne Controller model OM1 | SmartgridOne Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| D1 (+) | RS485 A | RS485_POS | RS485 A | TX+ |
| D0 (-) | RS485 B | RS485_NEG | RS485 B | TX- |
| 0V | RS GND | GND | Not available | G |

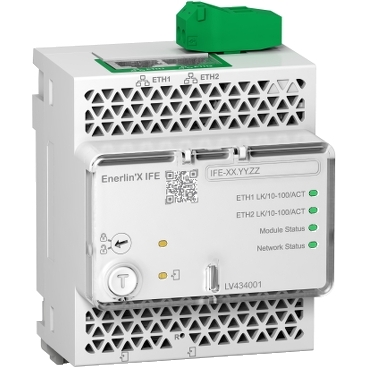

Required Part: EcoStruxure IFE Module (Ref: LV434001)
Ensure the trip unit is powered (the Ready LED should be blinking green).
If you are using the IFM (RS485) module, use the rotary dials on the front to set the address.
If using the IFE (Ethernet) module, you must configure it via a web browser:
| Parameter | Value |
|---|---|
| IP Address | Select a free IP (e.g. 192.168.1.50) |
| Subnet Mask | 255.255.255.0 |
| Gateway | Your Router's IP (e.g. 192.168.1.1) |
| Port | 502 |
