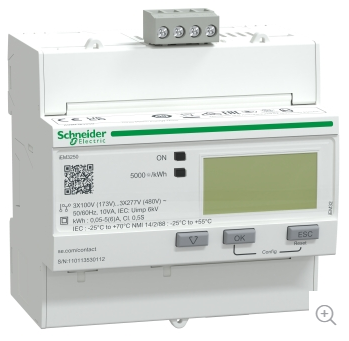

Schneider-Electric IEM 3000 Series Energy Meters
Supported Devices
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| Schneider-Electric IEM 3150 | ❌ | ✅ |
| Schneider-Electric IEM 3155 | ||
| Schneider-Electric IEM 3250 | ||
| Schneider-Electric IEM 3255 | ||
| Schneider-Electric IEM 3350 | ||
| Schneider-Electric IEM 3355 | ||
| Schneider-Electric IEM 3455 | ||
| Schneider-Electric IEM 3555 |
Warning
Warning
Not all Schneider-Electric IEM 3000 series energy meters register exported energy! Check with the energy meter manufacturer if in doubt. At least IEM 3150, IEM 3250 and IEM 3350 do not allow reading out exported energy.
Wiring
Info

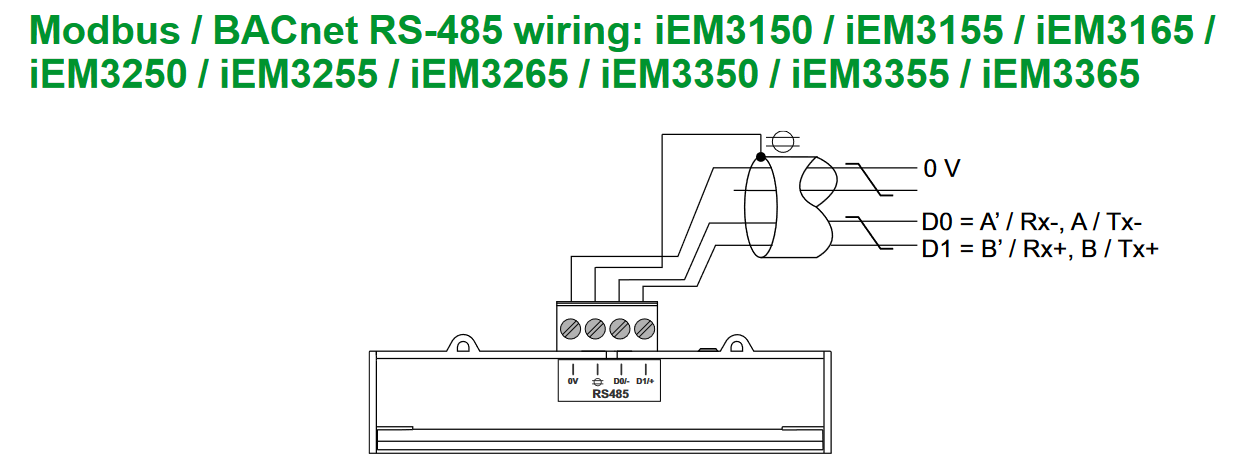

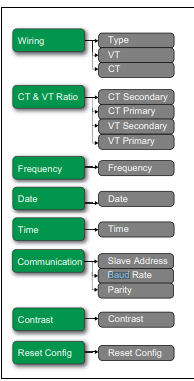

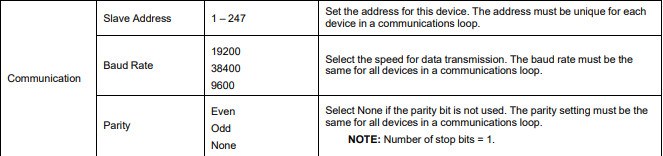

RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | SmartgridOne Controller model OM1 | SmartgridOne Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| D1 | RS485 A | RS485_POS | RS485 A | TX+ |
| D0 | RS485 B | RS485_NEG | RS485 B | TX- |
| 0V | RS GND | GND | Not available | G |
