Sungrow Inverters
Supported Devices
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| Powerstack | ✅ | ✅ |
Wiring
The SmartgridOne Controller and the battery system communicate via RS485 or Ethernet.
Ethernet
For correct ethernet wiring: Follow the .
RS485
Info
RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | SmartgridOne Controller model OM1 | SmartgridOne Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| A | RS485 A | RS485_POS | RS485 A | TX+ |
| B | RS485 B | RS485_NEG | RS485 B | TX- |
| GND (if available) | RS GND | GND | Not available | G |
Configuration

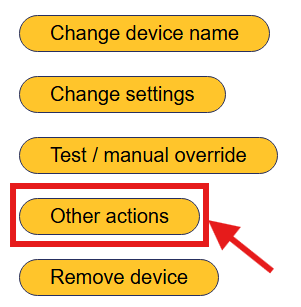

If you want to start the steering of the battery, or if it wasn't controlled for a long time, you can reactivate it by going into other actions and select "start the device".
